HDP TKT Digital Three-Knife Trimmer
A programmable digital three-knife trimmer for short and variable book runs, delivering precise three-side trimming with optional rounded-corner finishing and rapid format changeovers.

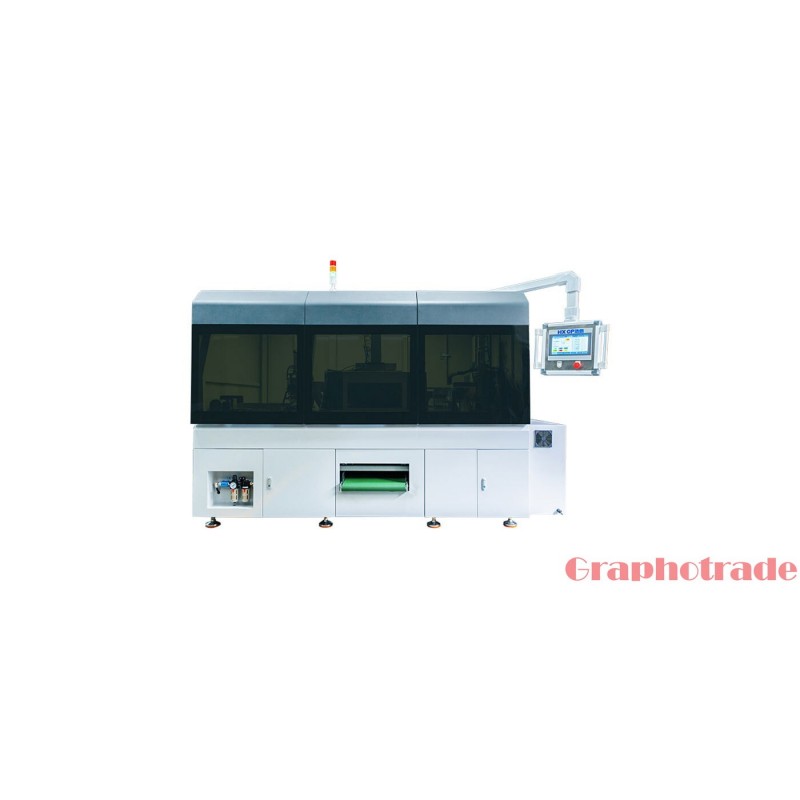

HDP TKT DIGITAL THREE-KNIFE TRIMMER
The HDP TKT is engineered for digital book production where job lengths are shorter, formats change frequently and consistent finished size is essential. The programmable cutting workflow trims head, foot and fore-edge with high accuracy, while optional corner-rounding tools extend the range of premium book and booklet applications.
KEY ADVANTAGES
• Digital job setup for fast format changes
• Three-side trimming in one automated cycle
• Stable accuracy for variable and short-run books
• Optional R6, R8, R10 and R12 corner radii
• Suitable for inline or near-line digital finishing
• Compact industrial footprint
TECHNICAL SPECIFICATIONS
Infeed book size max/min: 350 × 430 / 130 × 140 mm
Finished book size max/min: 320 × 420 / 120 × 130 mm
Book thickness: 5–65 mm
Production speed: 800–900 books/hour
Mechanical cycle speed: 700 cycles/hour
Cutting accuracy: ±0.5 mm
Corner-rounding options: R6 / R8 / R10 / R12
Power supply: 220 V
Installed power: 8 kW
Compressed air: 0.6 MPa
Dimensions: 2,900 × 1,400 × 1,900 mm
Weight: approx. 3,000 kg
APPLICATIONS
Perfect-bound books, sewn books, manuals, photo books, catalogues and digitally printed publications requiring quick and precise final trimming.
Graphotrade offers technical consultation, delivery, installation, training and service support in Bulgaria and the Balkans.
