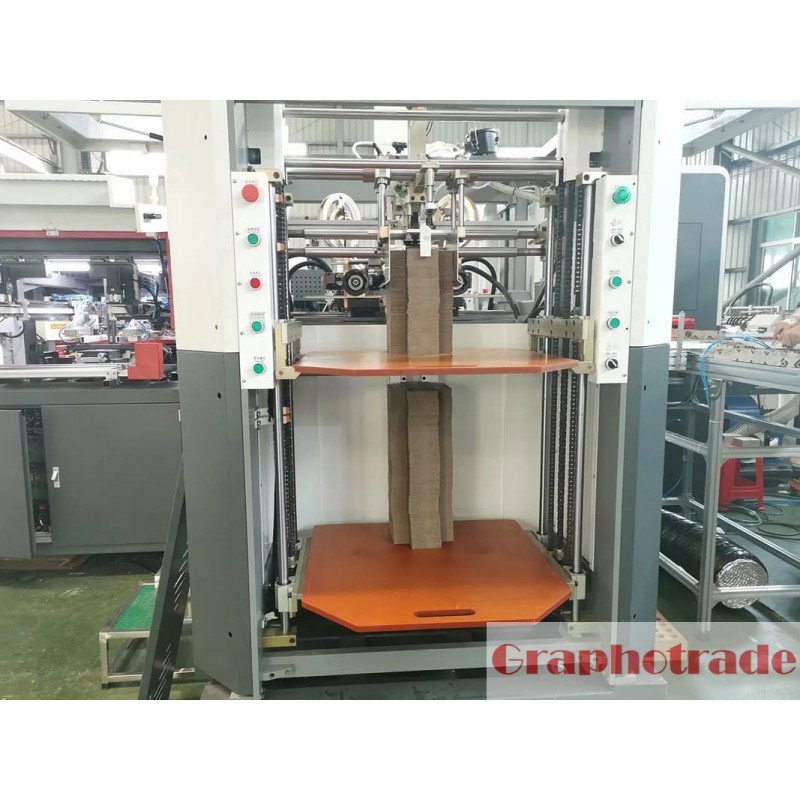

LY-750 Automatic Edge Mounting Machine
LY-750 Automatic Edge Mounting Machine
Automatic high-speed machine for mounting and reinforcing rigid-box edges with 19 mm adhesive tape. Designed for consistent corner geometry and stable production.
Technical specifications
| Model | LY-750 |
|---|---|
| Power supply | 380 V / 50 Hz / 3-phase |
| Total power | 3.8 kW |
| Box size | Min. 60 × 80 × 15 mm; max. 500 × 500 × 120 mm |
| Production speed | 10–85 pcs/min |
| Adhesive tape width | 19 mm |
| Greyboard stacking height | 1000 mm |
| Greyboard size | Up to 750 × 750 mm |
| Greyboard thickness | 1.2–4 mm |
| Machine dimensions | 2550 × 2100 × 2220 mm |
| Weight | 1280 kg |
