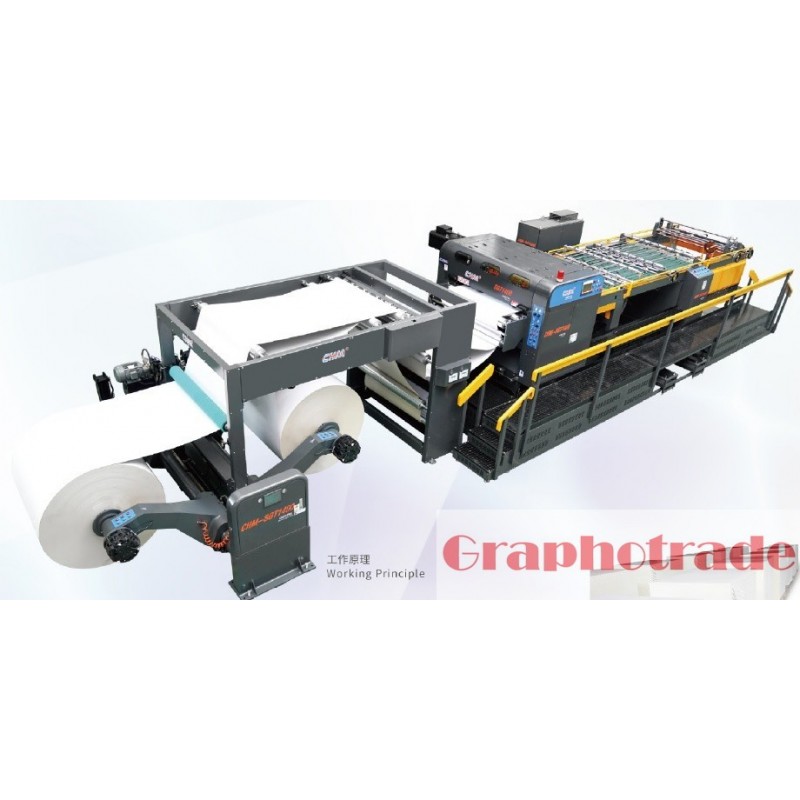

CHM-SGT1400/1700/1900 — Dual Rotary Paper and Board Sheeters
High-precision reel-to-sheet conversion for paper and board, 200–1000 g/m². Three working widths: 1400, 1700 and 1900 mm. Up to 300 sheets/min and 300 m/min, with ±0.5 mm cutting accuracy.
CHM-SGT1400/1700/1900 converts reels into precisely cut sheets for printing and packaging production. Synchronized upper and lower rotary knives deliver clean cuts with minimal fibres. Suitable for board, art paper, kraft paper and packaging paper.
Technical data
Models: CHM-SGT1400 / CHM-SGT1700 / CHM-SGT1900
Maximum cutting width: 1400 / 1700 / 1900 mm
Material range: 200–1000 g/m²
Cutting accuracy: ±0.5 mm
Maximum output: 300 sheets/min
Maximum web speed: 300 m/min
Cutting length: 450–1650 mm
Maximum reel diameter: 1800 mm
Stack height including pallet: 1500 mm
Weight: 15000 / 17000 / 18400 kg
Dimensions (L×W×H): 14453×4675×2350 / 14453×4975×2350 / 14453×5175×2350 mm
Configuration includes hydraulic shaftless unwinding, automatic web guiding, electric decurling, synchronized rotary cutting and automatic jogging. Optional inkjet, detection and slitting configurations are available.
Maximum figures depend on material, sheet length and configuration. Contact Graphotrade to discuss the appropriate model and configuration for your production.
