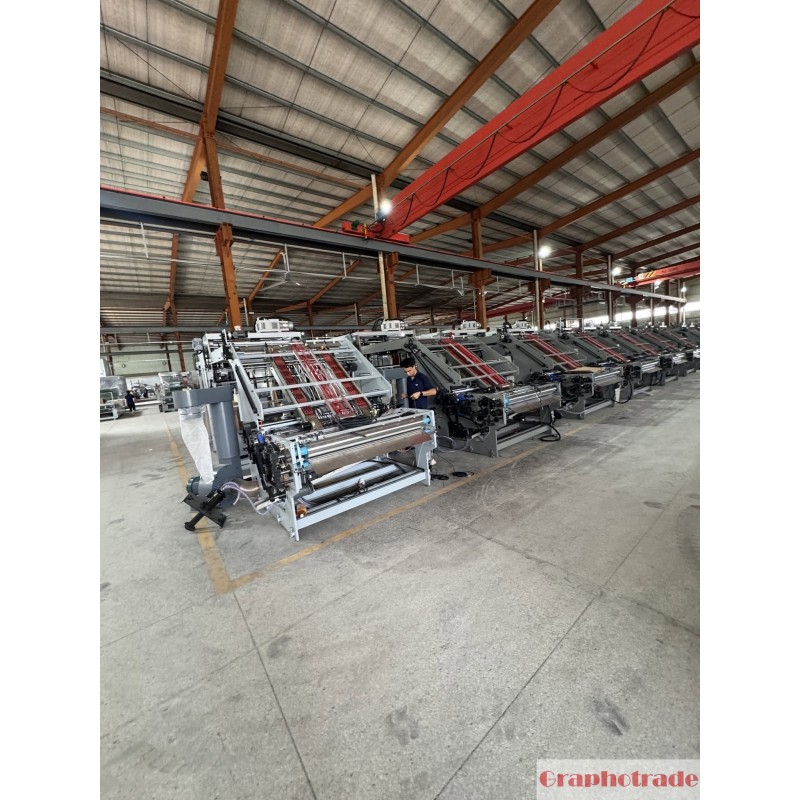

FENGCHI GW-1700 L/B Automatic Flute Laminator

Designed for larger packaging formats, the GW-1700 L/B laminates printed sheets to corrugated board with controlled registration and stable transport. The selectable feeding concept lets the line match the material: L leading-edge or B belt feeding.

Key data: maximum sheet size 1700 × 1650 mm; top sheet 120–700 g/m²; corrugated board up to 10 mm; production speed up to 16,000 sheets/hour; accuracy ±1.0 mm; 380 V three-phase supply; installed power approx. 30 kW.

The machine is suited to converters producing large cartons, displays and transport packaging. Final configuration and achievable output are verified against the board specification and production plan.
