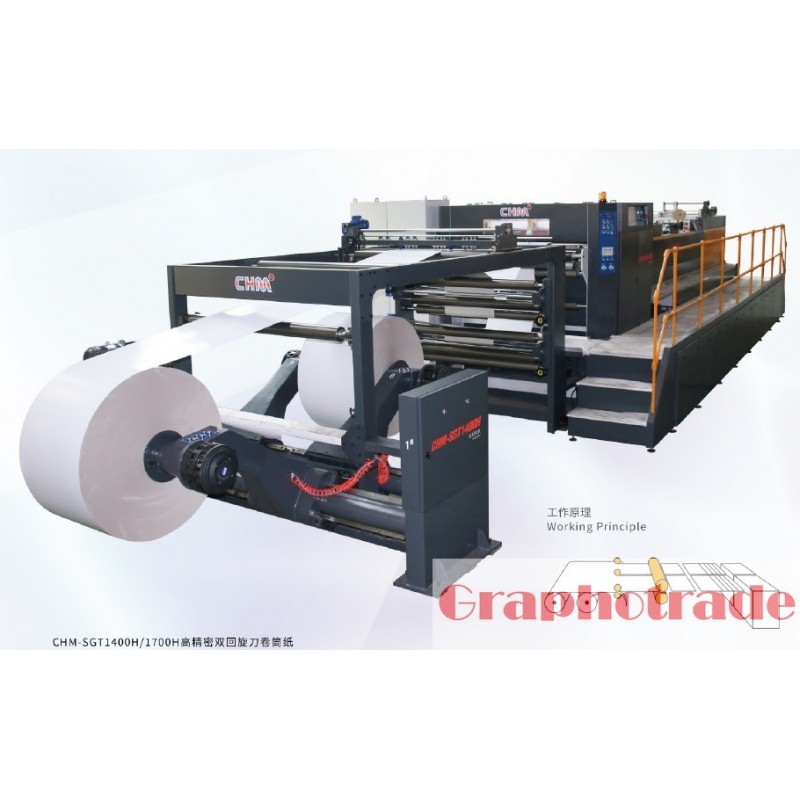

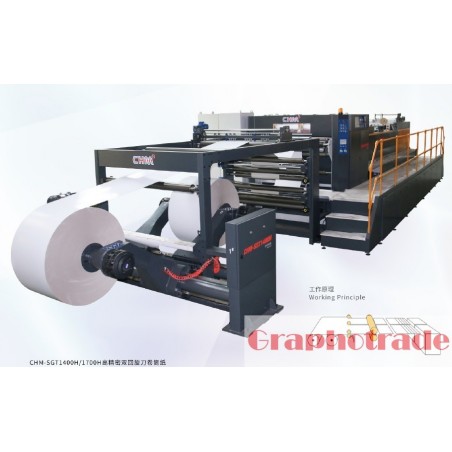

CHM-SGT1400H/1700H — Automatic Dual Rotary Paper and Board Sheeters
High-precision paper and board sheeters with automatic slitter positioning, 150–1000 g/m², up to 300 m/min and 400 cuts/min. Cutting accuracy ±0.3 mm.
CHM-SGT1400H/1700H converts paper and board reels into accurately cut sheets for printing and packaging. Synchronized upper and lower rotary knives provide clean cuts with minimal fibres. Automatic positioning of the longitudinal slitting knives helps simplify format changes.
Technical data
Models: CHM-SGT1400H / CHM-SGT1700H
Material range: 150–1000 g/m²
Cutting accuracy: ±0.3 mm
Maximum web speed: 300 m/min
Maximum cutting rate: 400 cuts/min
Cutting length: 400–1700 mm
Maximum reel diameter: 1800 mm
Maximum cutting width: 1500 / 1700 mm, according to the 2026 catalogue
Stack height including pallet: 1600 / 1700 mm
Weight: 21000 / 24000 kg
Dimensions (L×W×H): 15046×5193×2485.5 / 14808×7035×2450 mm
Equipment includes hydraulic shaftless unwinding, automatic web guiding, electric decurling, automatic slitter positioning, synchronized rotary cutting, conveyor and automatic jogging. Suitable for board, art paper, kraft and packaging paper.
Maximum figures depend on material, sheet length and configuration. Contact Graphotrade to select the model and configuration for your production.
