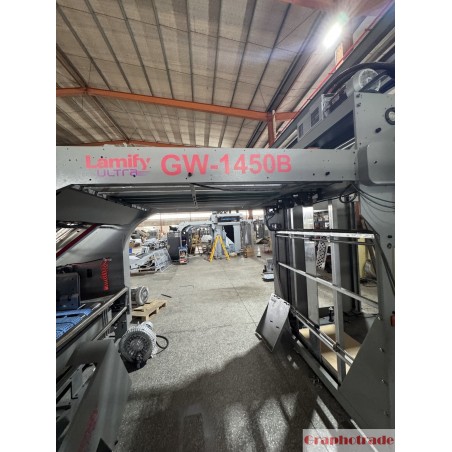

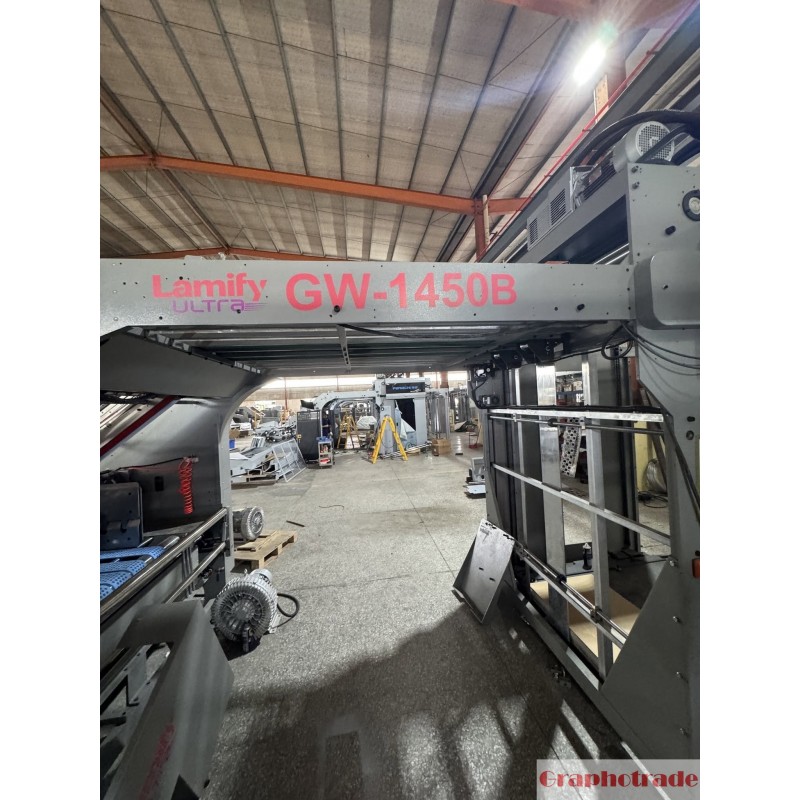

FENGCHI GW-1450 LP/BP High-Speed Flute Laminator
High-speed automatic flute laminator for precise mounting of colour-printed sheets to corrugated board. Available with LP leading-edge or BP belt feeding to suit the material and production workflow.
The FENGCHI GW-1450 LP/BP is designed for high-output packaging production where accurate registration, stable sheet transport and fast job changes are essential. The LP version uses leading-edge feeding, while the BP version uses belt feeding for smooth transport of board and flute materials.
Key technical data:
• Maximum sheet size: 1450 × 1450 mm
• Top sheet: 120–700 g/m²
• Bottom sheet: F-flute corrugated board up to 10 mm
• Maximum mechanical speed: up to 22,000 sheets/hour (up to 175 m/min)
• Laminating accuracy: ±1.0 mm
• Power supply: 380 V, 3-phase
• Installed power: approx. 26 kW
• Machine weight: approx. 8,000 kg
• Machine dimensions: approx. 15,700 × 2,400 × 2,550 mm
Servo-driven control, touchscreen job settings, automatic lubrication and a large glue roller support repeatable quality and shorter setup times. Suitable for folding-carton and corrugated-packaging plants producing display boxes, transport packaging and premium laminated board products. Final equipment, compatible materials and performance depend on the selected LP or BP configuration and should be confirmed for the customer’s application.
