LY-900SMB Automatic Case Forming Machine
LY-900SMB Automatic Case Forming Machine
Automatic four-side wrapping machine for hardcovers, cases, calendars, files and book-style boxes. PLC and touchscreen control provide stable, repeatable production.
Application

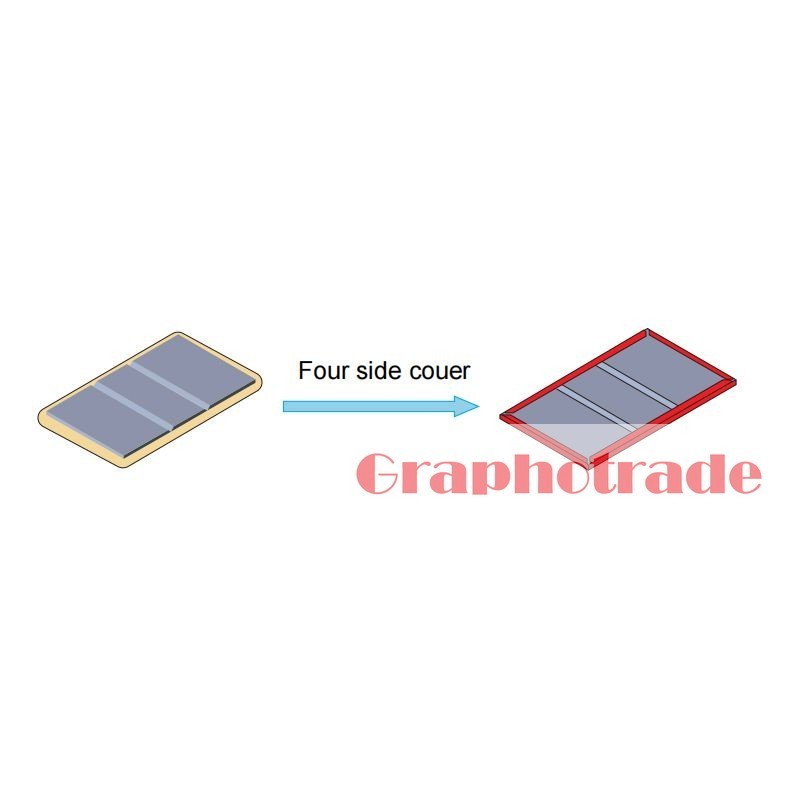

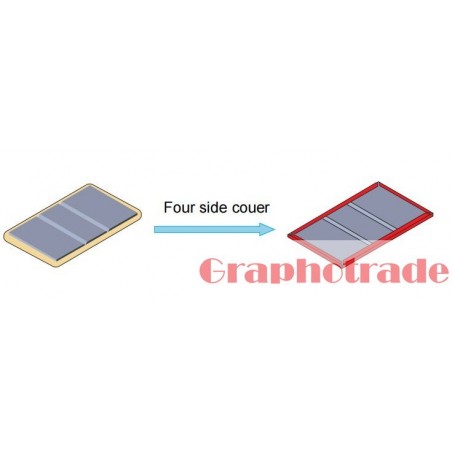

Designed for automatic four-side wrapping of hardcovers, cases, calendars, files and book-style rigid boxes.
Main features
- PLC and touchscreen control
- Automatic four-side wrapping
- Stable operation and repeatable changeovers
Technical specifications
| Power supply | 380 V / 50 Hz |
|---|---|
| Case length | 200–900 mm |
| Case width | 80–450 mm |
| Minimum spine / central strip | 20 mm |
| Minimum side width | 30 mm |
| Rated power | 2.5 kW |
| Production speed | 20–30 pcs/min |
| Working air pressure | 0.7 MPa |
| Machine dimensions | 2250 × 1100 × 1400 mm |
| Machine weight | 800 kg |
