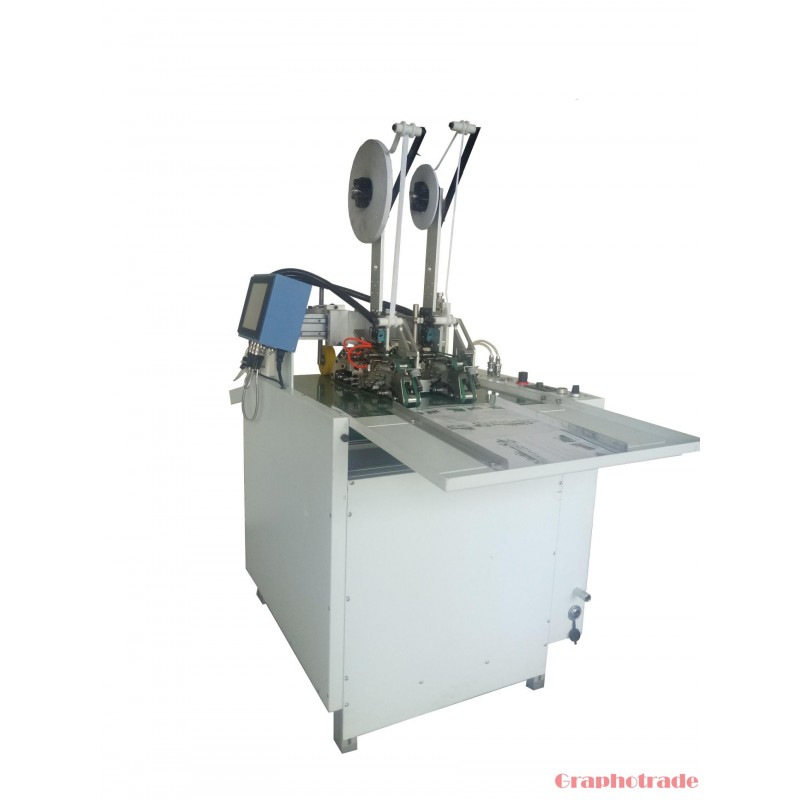

KQ TS-1100C20 Automatic Double-Sided Tape Application Machine
Fully automatic double-sided tape application machine for cardstock, corrugated board and cartons. Configuration with two TD-35 applicators, automatic feeding, alignment and stacking; speed up to 100 m/min.
The KQ TS-1100C20 is a fully automatic machine for precise application of double-sided adhesive tape to cardstock, corrugated board and cartons. The quoted configuration includes two TD-35 applicators and can be expanded to a total of four applicators.
The line combines automatic feeding, alignment, tape application, electronic control and automatic collection/stacking. A synchronous-belt main drive and precision synchronous gears in the positioning section ensure stable transport and repeatable placement.
Technical specifications
- Suitable materials: cardstock above 200 g/m²; A, B, C and E flute corrugated board; cartons
- Product width: 100–1100 mm
- Maximum product length: 1000 mm
- Tape width: 5–35 mm
- Conveyor speed: 0–100 m/min
- Application accuracy: ±2 mm
- Applicators: 1–4; quoted configuration: 2 × TD-35
- Machine footprint: 4200 × 1500 mm
- Weight: approximately 850 kg
- Power supply: 220 V, 50/60 Hz
- Total installed power: 2.65 kW
TD-35 applicator data
- Tape-width head options: 10–35, 35–60 or 60–80 mm
- Tape-roll diameter: 90–400 mm; core diameter: 75 mm
- Operating speed: 5–100 m/min
- Minimum spacing between tape sections: over 30 mm
- Accuracy: ±2 mm
- Power: 15 W; weight: 7.5 kg per applicator
The tooth-type cutter provides clean tape separation. Automatic counting, stacking and application-specific optional functions can be configured according to the product.
