HDP1100 Wide-Format Roll-to-Book-Block Digital Line
A high-capacity digital finishing line for converting wide printed rolls into accurately folded, cut, glued and stacked book blocks. Designed for demanding short-run and book-of-one production with web widths up to 1,100 mm and speeds up to 200 m/min.
HDP1100 WIDE-FORMAT ROLL-TO-BOOK-BLOCK DIGITAL LINE
Built for industrial digital book production, the HDP1100 transforms a wide printed web into finished book blocks in one continuous process. Unwinding, dual plow folding, precision cross-cutting, side gluing and controlled stacking are synchronized to reduce handling and keep production stable across long and variable jobs.
KEY ADVANTAGES
• Handles web widths from 330 to 1,100 mm
• Production speed from 10 to 200 m/min
• Produces 4-, 6- or 8-page signatures
• Dual folding plates for flexible imposition
• Book-of-one capability with variable book-block thickness
• Optional dynamic perforation and edge trimming
• Heavy-duty configuration for continuous production
TECHNICAL SPECIFICATIONS
Unwinding roll diameter: 85–1,300 mm
Paper weight: 40–150 gsm
Web width: 330–1,100 mm
Production speed: 10–200 m/min
Signature width: 130–254 mm
Signature length: 200–356 mm
Folding formats: 4 / 6 / 8 pages
Number of folding plates: 2
Maximum stacking height: 120 mm
Power supply: 400 V AC
Installed power: 28 kW
Compressed air: 6 bar, 3 L/min
Working temperature: 5–40 °C
Working humidity: 15–85%
Dimensions (L × W × H): 16,734 × 2,383 × 1,856 mm
Machine weight: approx. 13,000 kg

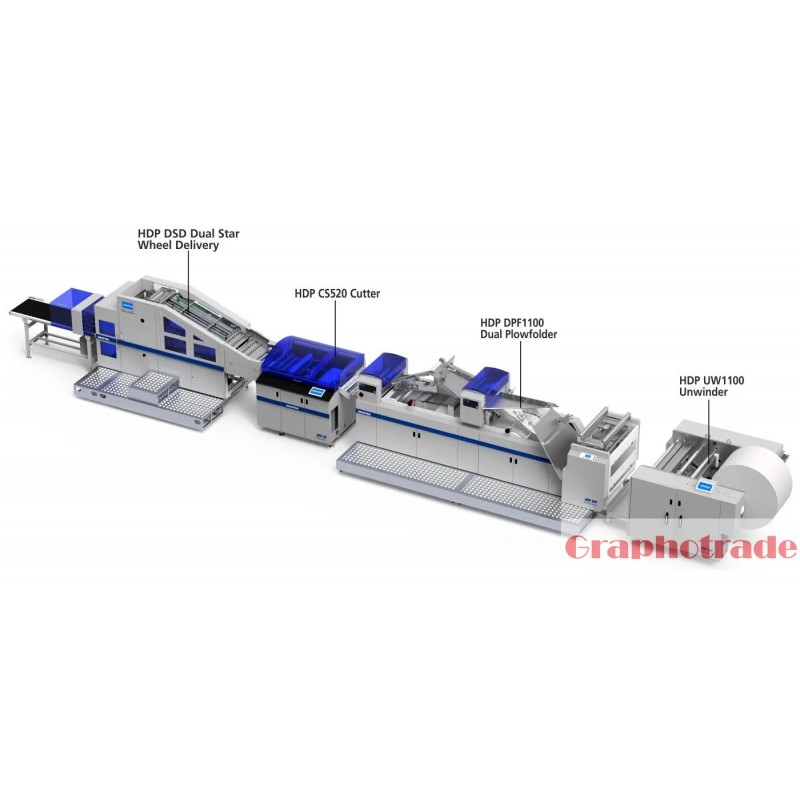

MAIN MODULES
HDP UW1100 Unwinder
HDP DPF1100 Dual Plowfolder
HDP CS520 Cutter
HDP DSD Dual Star Wheel Delivery
APPLICATIONS
Well suited to digital book printers, publishing plants and finishing companies producing manuals, educational books, novels and variable short-run titles from roll-fed digital presses.
Graphotrade can assist with configuration, integration, delivery, installation, operator training and after-sales support in Bulgaria and the Balkans. Contact us for a tailored technical and commercial proposal.
