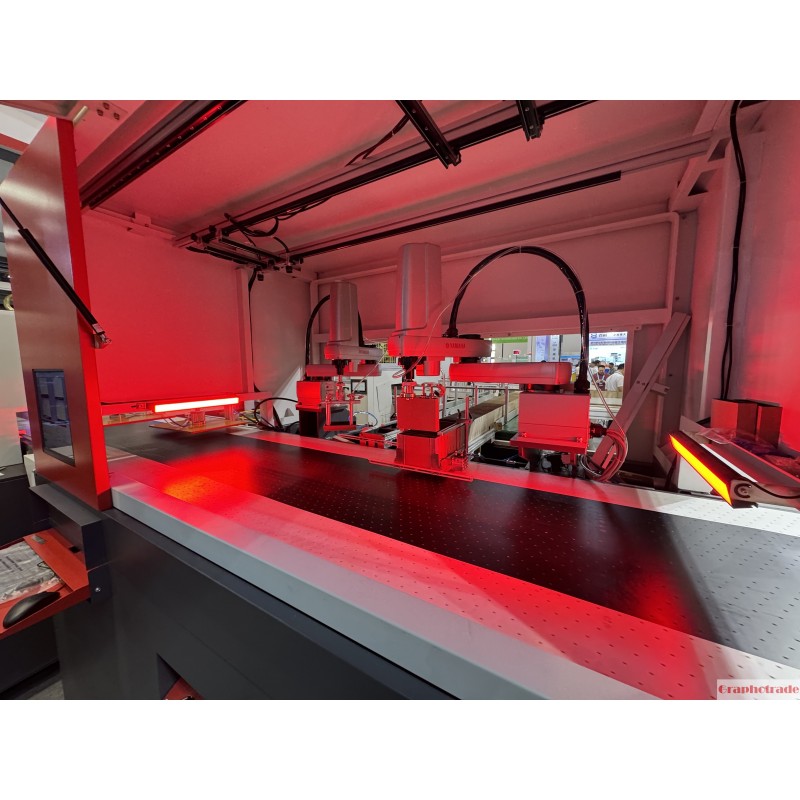

LY-850DN Multiple Double-Sheet Visual Positioning Machine
LY-850DN Multiple Double-Sheet Visual Positioning Machine
Automatic gluing and high-precision visual positioning system for rigid boxes, hard covers, drawer boxes and irregular luxury packaging. Two independently servo-controlled feeding stations, four high-resolution cameras and a YAMAHA robot arm enable single- or double-product positioning.
Applications and features
- Rigid boxes, hard covers, drawer boxes and irregular shapes
- Single and double-sheet positioning
- Two independent servo feeding stations
- Four high-resolution cameras and YAMAHA robot arm
- Inside-lining function
Technical specifications
| Model | LY-850DN |
|---|---|
| Paper size, single sheet | W 80–800 × L 120–900 mm |
| Paper size, double sheet | W 80–375 × L 120–900 mm |
| Paper weight | 100–350 g/m² |
| Board thickness | > 2 mm |
| Single case size | W 65–500 × L 65–1000 mm |
| Double case size | W 65–375 × L 65–375 mm |
| Single box size | Min. 65 × 65 × 5 mm; max. 700 × 400 × 120 mm |
| Double box size | Min. 65 × 65 × 5 mm; max. 350 × 350 × 120 mm |
| Speed, double positioning | 30–40 pcs/min |
| Speed, single positioning | 15–40 pcs/min |
| Machine dimensions | 7415 × 2510 × 2000 mm |
| Weight | 1500 kg |
00006
Data sheet
- Manufacturer
- LY Lishunyan
- Automation
- automatic
- Machine Type
- Positioning
- Application
- Подаръчни кутии
