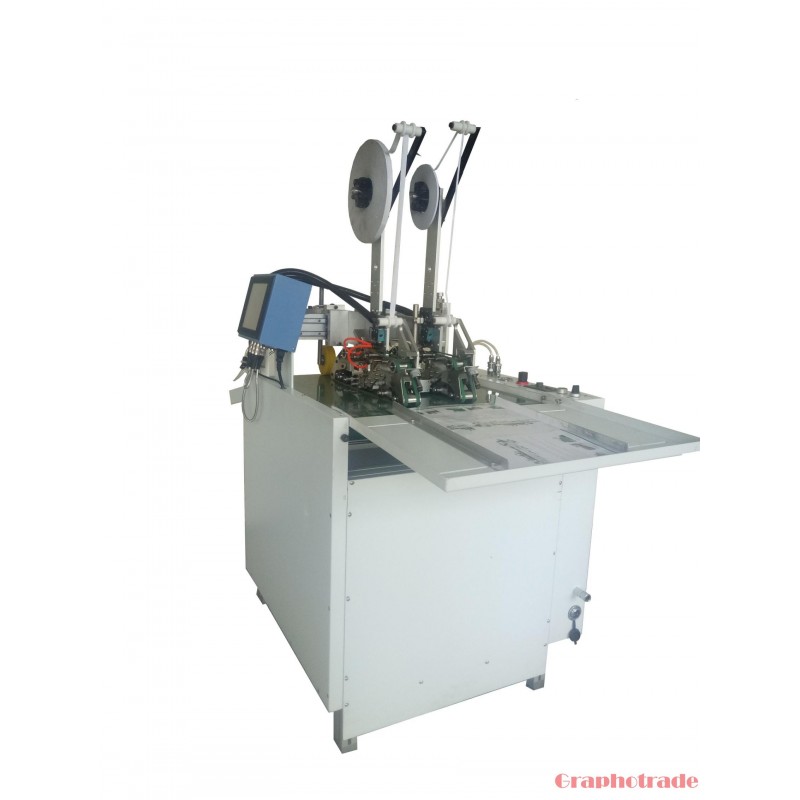

KQ TS-1100A Semi-Automatic Double-Sided Tape Applicator
Semi-automatic machine with manual feeding and four applicators for precise application of double-sided adhesive tape to cardboard, corrugated board and packaging products up to 1100 × 1100 mm.
The KQ TS-1100A is a flexible semi-automatic solution for applying double-sided adhesive tape to cardboard and corrugated packaging products. The operator positions and feeds the sheet manually, while four applicators apply and cut the tape at the programmed length.
Suitable materials: cardboard above 80 gsm, A, B, C and E flute corrugated board, and five-ply corrugated products. Touchscreen control allows quick adjustment of tape length and operating parameters.
Key specifications:
• Maximum product size: 1100 × 1100 mm
• Number of applicators: 4
• Tape width: 5–35 mm
• Conveyor speed: 0–30 m/min
• Application accuracy: ±2 mm
• Machine dimensions: approximately 2000 × 1500 mm
• Weight: approximately 300 kg
• Power supply: 220 V
• Installed power: 120 W
Typical applications include folding cartons, corrugated boxes, display materials, envelopes, folders and other packaging products requiring clean and repeatable double-sided tape application.
Configuration and final technical details are confirmed according to the customer’s product samples and production requirements. Contact Graphotrade for consultation, tests and an individual offer.
