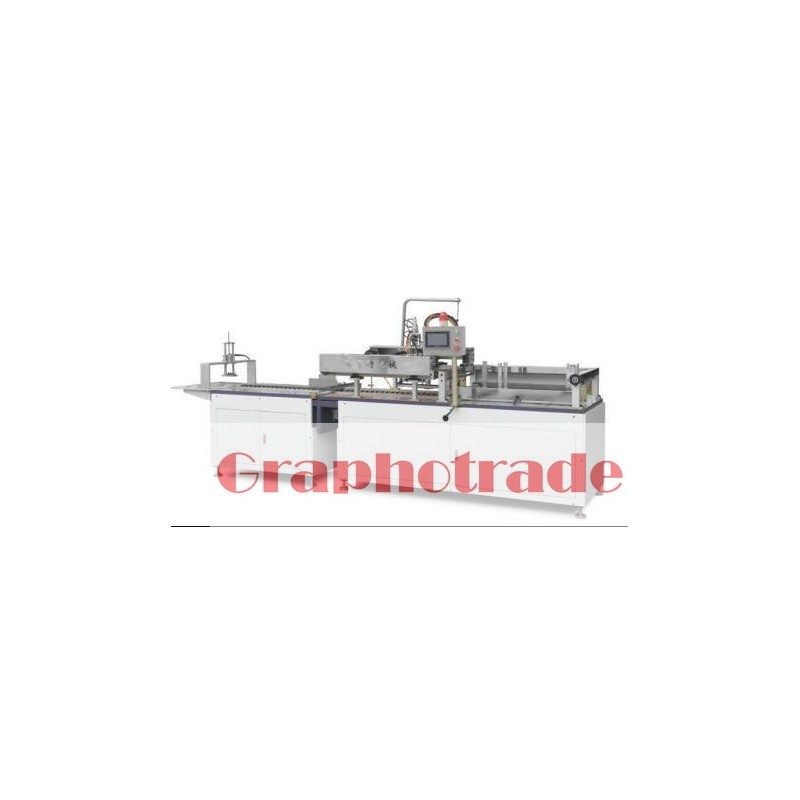

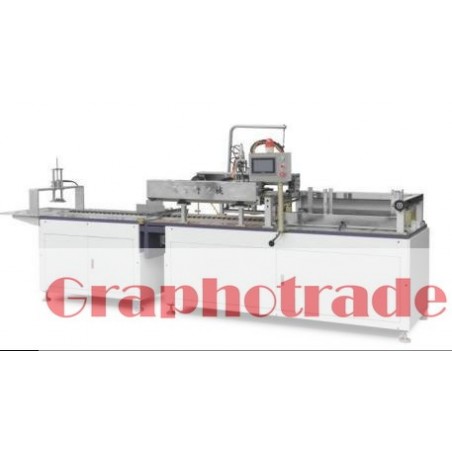

LY-DT4350 + LY-500HJ Folding & Gluing Line
LY-DT4350 + LY-500HJ Folding & Gluing Line
Modular semi-automatic solution combining folding with precise glue spraying for covers and rigid-box components in short and medium production runs.
Line configuration
LY-DT4350 folding module
Folding module for preparing cover and rigid-box components. The exact working format and tooling are confirmed according to the required product specification.
LY-500HJ glue spraying module
- PLC, servo and photoelectric control
- Gantry-type glue head for accurate spraying
- Hot-melt glue as standard; cold-glue configuration available
- Suitable for small and medium orders
Verified LY-500HJ specifications
| Maximum cover / box size | 900 × 600 × 120 mm |
|---|---|
| Minimum cover size | 100 × 50 mm |
| Production speed | 15–25 pcs/min |
| Spraying accuracy | ±0.1 mm |
| Installed power | 6 kW |
| Air pressure | 0.5–0.7 MPa |
| Machine weight | 300 kg |
| Machine dimensions | 1400 × 1300 × 1800 mm |
