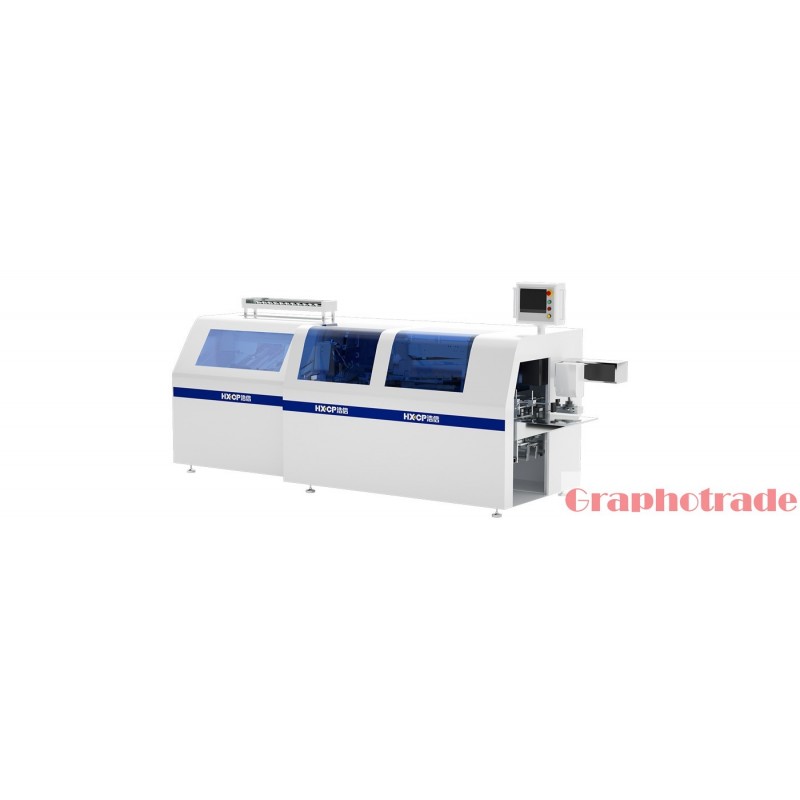

HXCP HDP SEW Digital Thread Sewing Machine
Give short-run digital books a sewn binding structure. This solution automates sheet preparation through creasing, folding and pressing ahead of thread sewing, helping connect digital printing with durable book production.
Give short-run digital books a sewn binding structure. This solution automates sheet preparation through creasing, folding and pressing ahead of thread sewing, helping connect digital printing with durable book production.
Technical data
| Max. Effective Production Speed | 500 A4 sheets/min |
| Min. Sheet Size | 150×200mm |
| Max. Sheet Size | 420×640mm |
| Min. Signature Size | 150×100mm |
| Max. signature size | 420×320mm |
| Number of Sheets in Signature | 1-16sheets |
| Max. Folded Signature Thickness | 1.5mm |
| Number of Stitch Positions | 10 |
| Stitch Length | 19mm |
| Sheet Stacking Height | 500mm |
| Max. Workbench Loading | 200kg |
| Max. Power Consumption | 4.5kW |
| Max. Mechanical Sewing Speed | 10000cycles/h |
| Max. Sheet Feeding Speed | 550sheets/min |
| Standard Volta | 400V, 50Hz, 3Phases |
| Max. Air Consumption (External Supply) | 620L/min @7bar |
| Net Weight | 3000kg |
Contact Graphotrade for a configuration and quotation suited to your production.
