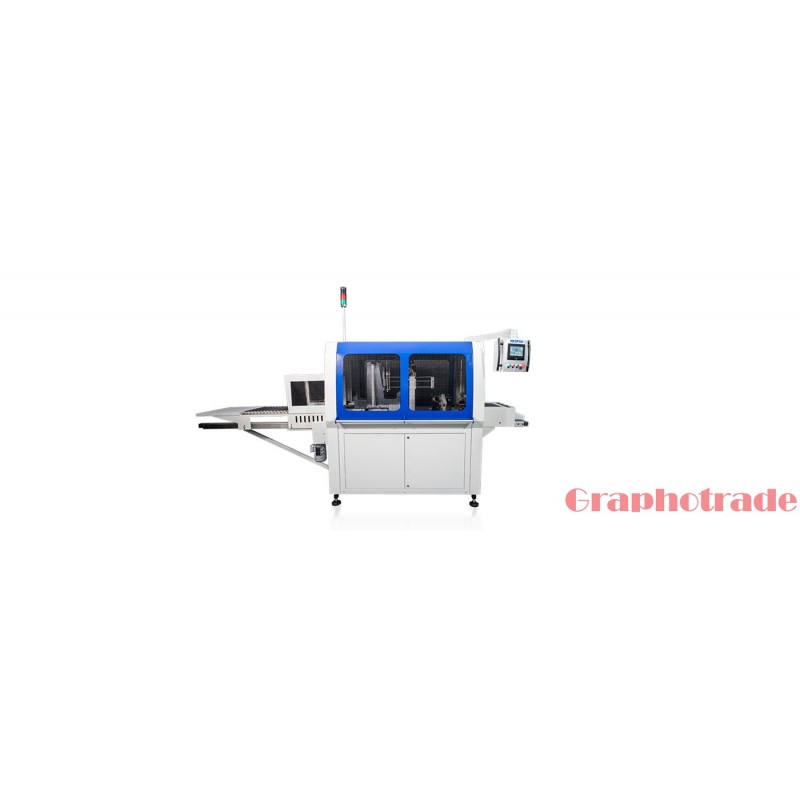

HXCP HX681 Hardcover Book Interleaving Pile Stacking Machine
Stack finished hardcover books with controlled turning through 90 or 180 degrees. The machine can act as an end stacker or a pass-through unit, preparing book batches for the next packaging operation.
Stack finished hardcover books with controlled turning through 90 or 180 degrees. The machine can act as an end stacker or a pass-through unit, preparing book batches for the next packaging operation.
Technical data
| Fastest Speed | 65 books/min |
| Book Length Range | 115-390mm |
| Book Width Range | 70-285mm |
| Book Thickness Range | 5-90mm |
| Max. Pile Height | 350mm |
| Dimensions | 3852×1325×1785mm |
| Weight | 850kg |
| Voltage | 3ph,380V/50Hz,16A |
| Compressed Air | 6Nm³/h, 6 bar |
Contact Graphotrade for a configuration and quotation suited to your production.
HXCP-CAT-42
