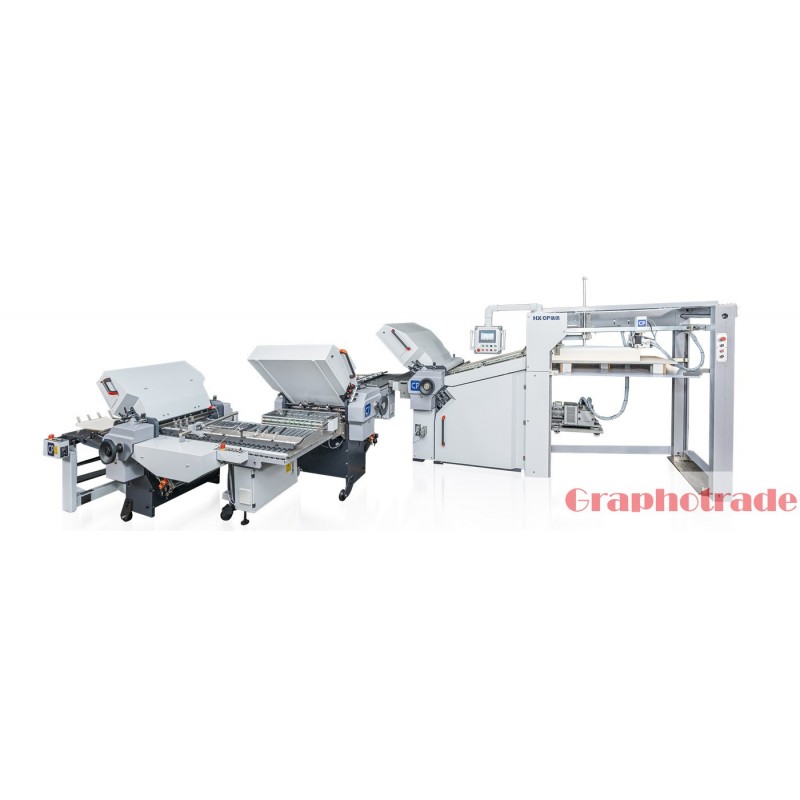

HXCP CP Gantry Pallet Buckle Folding Machine
Move the printed pallet directly to the folding feeder. The gantry arrangement reduces manual sheet handling and suits medium and long runs, especially when larger signatures make repeated pile loading demanding.
Move the printed pallet directly to the folding feeder. The gantry arrangement reduces manual sheet handling and suits medium and long runs, especially when larger signatures make repeated pile loading demanding.
Technical data
| CP Buckle 66-F Max. sheet size | 660×1040mm |
| Min. sheet size | 200×150mm |
| Paper Thickness | 40-210gsm |
| Max. Speed | 210m/min |
| CP Buckle 78-F Max. sheet size | 780×1140mm |
| Min. sheet size | 200×150mm |
| Paper Thickness | 40-210gsm |
| Max. Speed | 210m/min |
| CP Buckle 80-F Max. sheet size | 800×1200mm |
| Min. sheet size | 200×150mm |
| Paper Thickness | 40-210gsm |
| Max. Speed | 210m/min |
| CP Buckle 66-F Power | 8.5kW |
| Dimensions | 4800×1510mm(L*W) |
| Weight | 2200kg |
| Stack Height | 0-1200mm |
| CP Buckle 78-F Power | 8.5kW |
| Dimensions | 4800×1630mm(L*W) |
| Weight | 2300kg |
| Stack Height | 0-1200mm |
| CP Buckle 80-F Power | 8.5kW |
| Dimensions | 4800×1650mm(L*W) |
| Weight | 2400kg |
| Stack Height | 0-1200mm |
Contact Graphotrade for a configuration and quotation suited to your production.
