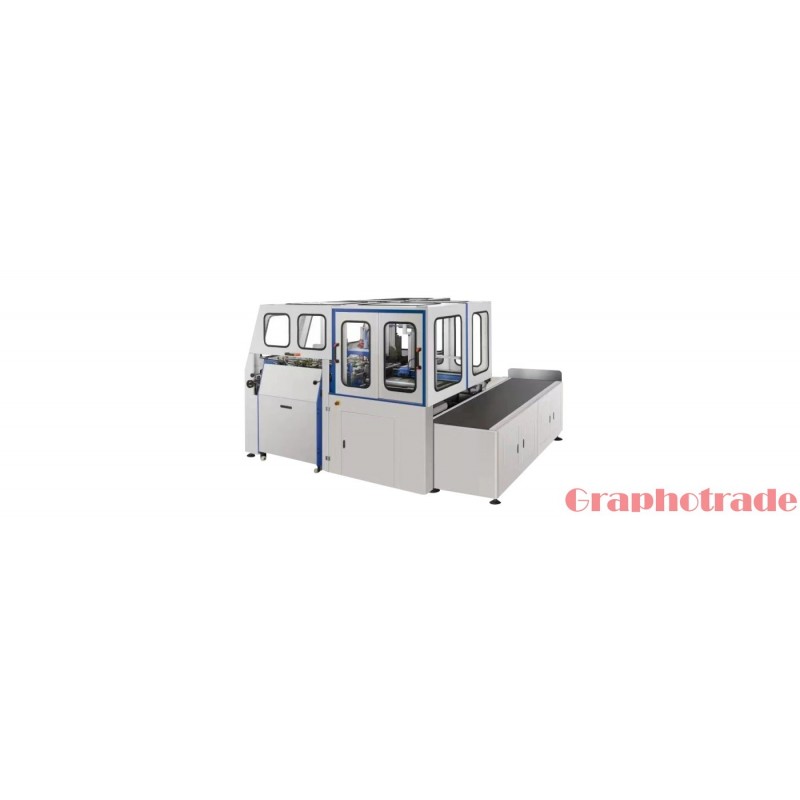

HXCP HX36 Multifunctional Case Making Machine
Make cases with straight, rounded or shaped contours and several separate boards. The multifunctional design serves books, stationery and rigid-box packaging when the programme extends beyond standard rectangular covers.
Make cases with straight, rounded or shaped contours and several separate boards. The multifunctional design serves books, stationery and rigid-box packaging when the programme extends beyond standard rectangular covers.
Technical data
| Max Case Size | 680×400mm |
| Min Case Size | 70×70mm |
| Center Board Size | 6-100mm |
| Center Board Thickness | 0.3-5mm |
| Board Thickness | 0.5-5mm |
| Gutter Width | 3-17mm |
| Speed | 10-36pcs/min |
| Voltage | 380/220V |
| Weight | 4500KG |
| Power | 10.4KW |
| Dimensions | 3500×3500×2000mm |
| E-controller Size | 1120×560×980mm |
Contact Graphotrade for a configuration and quotation suited to your production.
