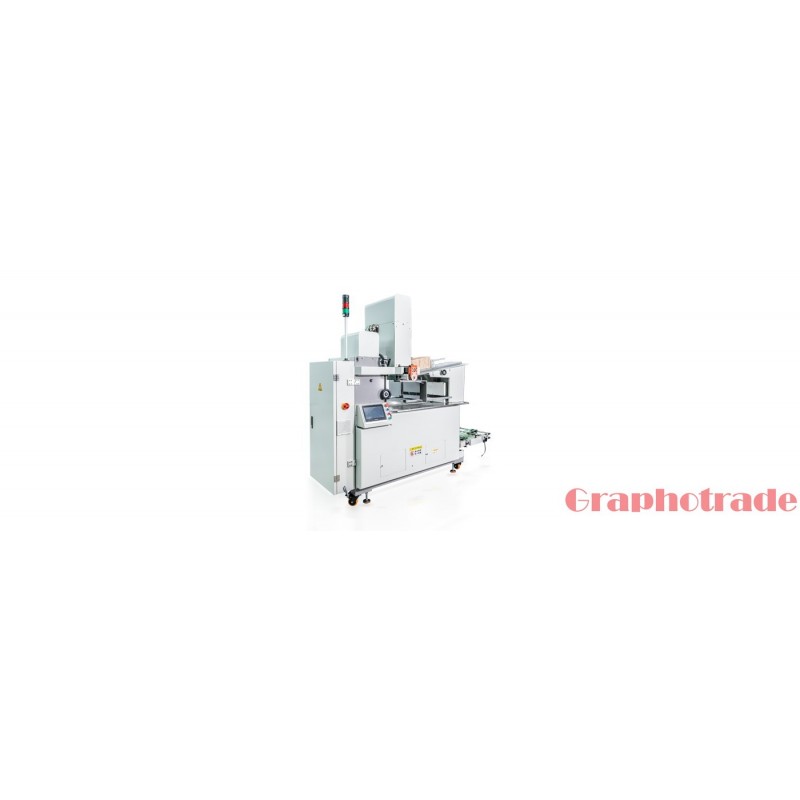

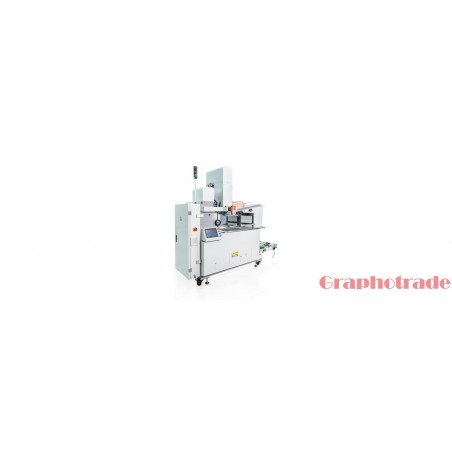

HXCP DK520 Automatic Vertical Press Stacking and Bundling Machine
Receive folded signatures directly from the folder, align and compress them, then transfer the bundle to automatic banding. Automatic end-board insertion makes the module a practical delivery option for industrial folding runs.
Receive folded signatures directly from the folder, align and compress them, then transfer the bundle to automatic banding. Automatic end-board insertion makes the module a practical delivery option for industrial folding runs.
Technical data
| Max. Folding Speed | 20000pcs/h |
| Max. Signature Size | 460x320mm |
| Min. Signature Size | 210x105mm |
| Bundle Thickness | 500-700mm |
| Feeding Height | 300-520mm |
| Board Thickness | 8-12mm |
| Bundling Pressure | 8000N |
| Power | 380v/3ph 6.5kw |
| Gas Demand | 6bar |
| Dimensions | 3000x950x2550mm(LxWxH) |
| Weight | 2000kg |
Contact Graphotrade for a configuration and quotation suited to your production.
