- New

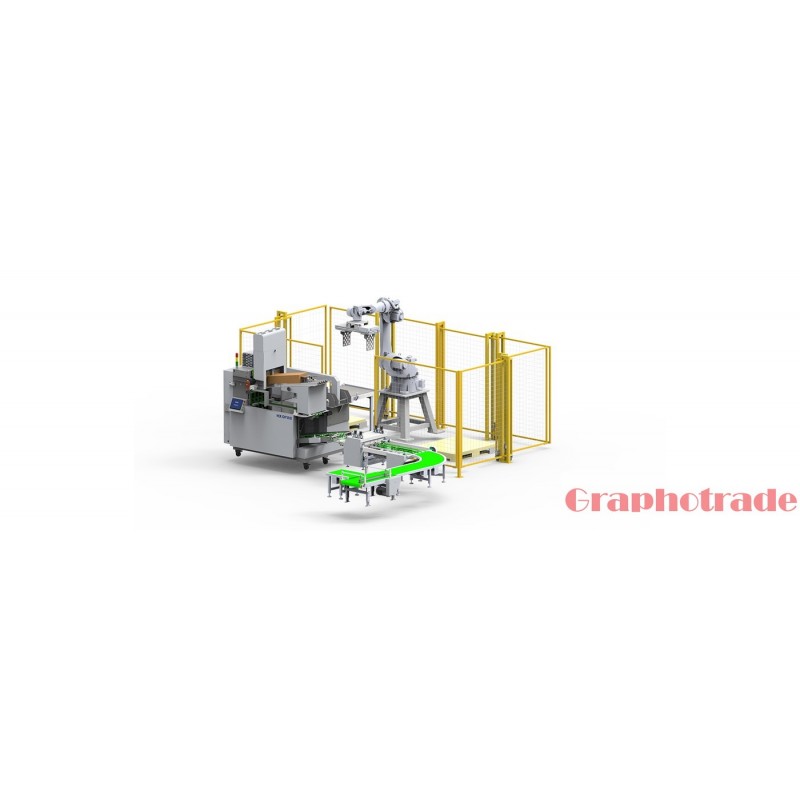

HXCP CP Round Pile Buckle Folding Machine
Keep medium and long folding runs moving with a round-pile feeder that can be replenished without interrupting production. Multiple folding stations and buckle plates provide a flexible platform for different folding patterns.
Keep medium and long folding runs moving with a round-pile feeder that can be replenished without interrupting production. Multiple folding stations and buckle plates provide a flexible platform for different folding patterns.
Technical data
| CP Buckle 66-R Max. sheet size | 660×1040mm |
| Min. sheet size | 180×100mm |
| Paper Thickness | 40-210gsm |
| Max. Speed | 210m/min |
| CP Buckle 78-R Max. sheet size | 780×1140mm |
| Min. sheet size | 200×150mm |
| Paper Thickness | 40-210gsm |
| Max. Speed | 210m/min |
| CP Buckle 80-R Max. sheet size | 800×1200mm |
| Min. sheet size | 200×150mm |
| Paper Thickness | 40-210gsm |
| Max. Speed | 210m/min |
| Feeding Height | 300-520mm |
| Board Thickness | 8-12mm |
| Bundling Pressure | 8000N |
| Power | 380v/3ph 6.5kw |
| Gas Demand | 6bar |
| Dimensions | 3000x950x2550mm(LxWxH) |
| Weight | 2000kg |
Contact Graphotrade for a configuration and quotation suited to your production.
