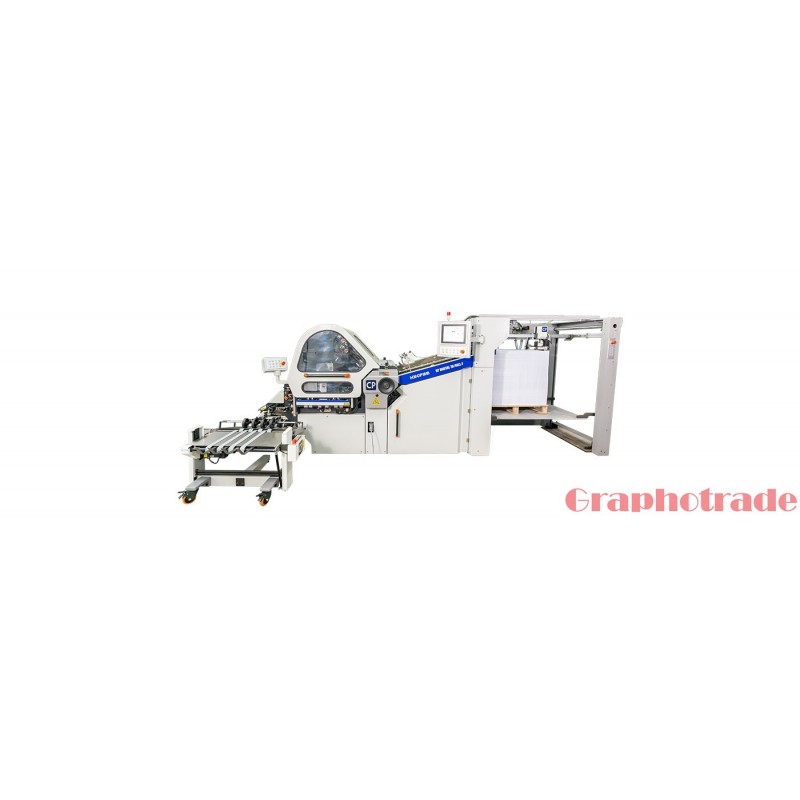

HXCP CP Automatic Digital Folding Machine
Set folding patterns from the touchscreen using sheet dimensions, saved jobs and pattern selection. Automated adjustment of folding plates, knives and guides helps prepare frequently changing folding jobs.
Set folding patterns from the touchscreen using sheet dimensions, saved jobs and pattern selection. Automated adjustment of folding plates, knives and guides helps prepare frequently changing folding jobs.
Technical data
| CP DIGITAL 66/4KL-F Max. sheet size | 660×1040mm |
| Min. sheet size | 200×150mm |
| Paper Thickness | 40-210gsm |
| Max. Speed | 210m/min |
| CP DIGITAL 78/4KLL-F Max. sheet size | 780×1140mm |
| Min. sheet size | 200×150mm |
| Paper Thickness | 40-210gsm |
| Max. Speed | 210m/min |
| CP DIGITAL 80/4KLL-F Max. sheet size | 800×1200mm |
| Min. sheet size | 200×150mm |
| Paper Thickness | 40-210gsm |
| Max. Speed | 210m/min |
| CP DIGITAL 66/4KL-F Power | 8.5kW |
| Dimensions | 4800×1510mm(L*W) |
| Weight | 2200kg |
| Stack Height | 0-1200mm |
| CP DIGITAL 78/4KLL-F Power | 8.5kW |
| Dimensions | 4800×1630mm(L*W) |
| Weight | 2300kg |
| Stack Height | 0-1200mm |
| CP DIGITAL 80/4KLL-F Power | 8.5kW |
| Dimensions | 4800×1650mm(L*W) |
| Weight | 2400kg |
| Stack Height | 0-1200mm |
Contact Graphotrade for a configuration and quotation suited to your production.
