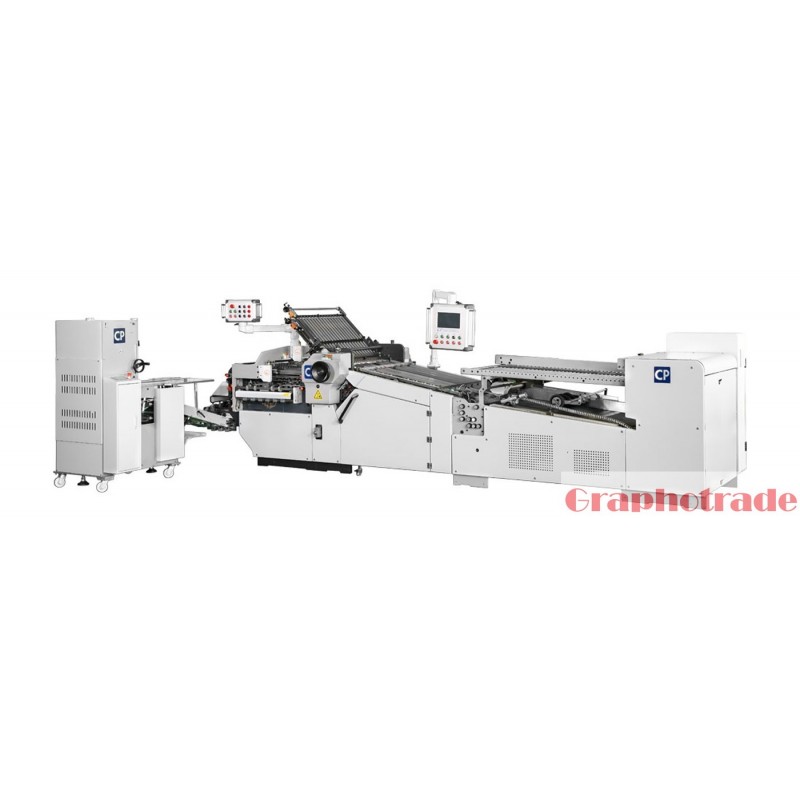

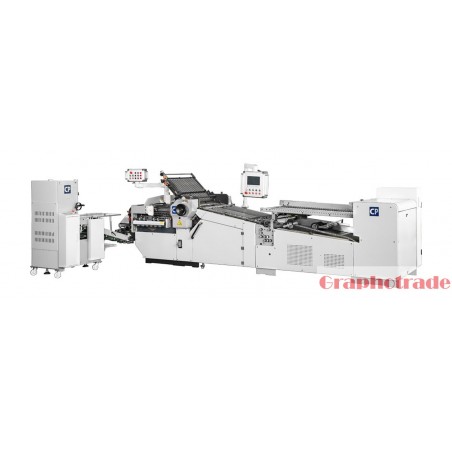

HXCP CP Round Pile Combi Folding Machine
Keep folding while the round-pile feeder is replenished. The combined folding arrangement suits medium and long runs and can handle pre-folded, perforated or creased signatures within the specified configuration.
Keep folding while the round-pile feeder is replenished. The combined folding arrangement suits medium and long runs and can handle pre-folded, perforated or creased signatures within the specified configuration.
Technical data
| CP66/4KL-R Max. sheet size | 660×1040mm |
| Min. sheet size | 180×100mm |
| Paper Thickness | 40-210gsm |
| Max. Speed | 210m/min |
| CP78/4KL-R Max. sheet size | 780×1140mm |
| Min. sheet size | 200×150mm |
| Paper Thickness | 40-210gsm |
| Max. Speed | 210m/min |
| CP80/4KL-R Max. sheet size | 800×1200mm |
| Min. sheet size | 200×150mm |
| Paper Thickness | 40-210gsm |
| Max. Speed | 210m/min |
| Power | 7kW |
| Dimensions | 6400×2800mm(L×W) |
| Weight | 2000kg |
Contact Graphotrade for a configuration and quotation suited to your production.
HXCP-CAT-21
