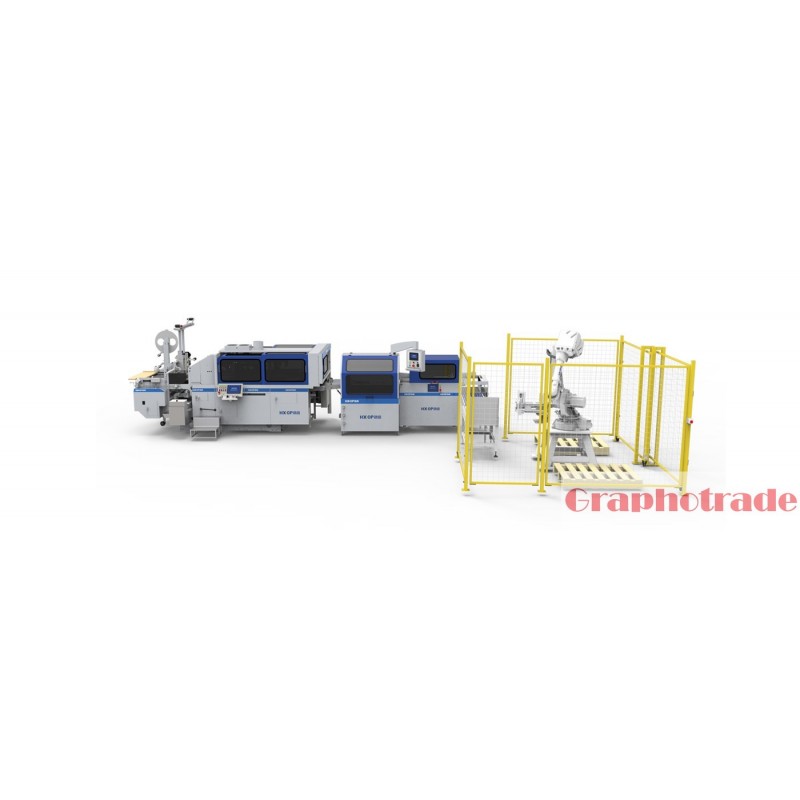

HXCP Intelligent Hardcover Case Production Line
Link case making, corner rounding, case turning and robotic stacking into one production concept. Based around the HX60 PLUS, this configuration reduces repeated manual handling between hardcover-case operations.
Link case making, corner rounding, case turning and robotic stacking into one production concept. Based around the HX60 PLUS, this configuration reduces repeated manual handling between hardcover-case operations.
Technical data
| Speed | 60pcs/min |
| Board Thickness | 1-4mm(optional device for minimum thickness 0.6mm) |
| Spine Width | 6-80mm |
| Thickness of Center Board Strip | 1-4mm(the most thickness is 2.5mm when width is 6mm) |
| Thickness of Flexible Spine | 0.3-0.5mm |
| Thickness of Cover Material | 0.1-0.3mm |
| Maximum Size (Expand) of Hardcover | 680×390mm |
| Minimum Size (Expand) of Hardcover | 105×160mm |
| Compressed Air Requirments | 650L/min @6bar |
| Power | 20kW |
| Weight | 9000kg |
| Dimensions | 10×4m(L×W) |
Contact Graphotrade for a configuration and quotation suited to your production.
