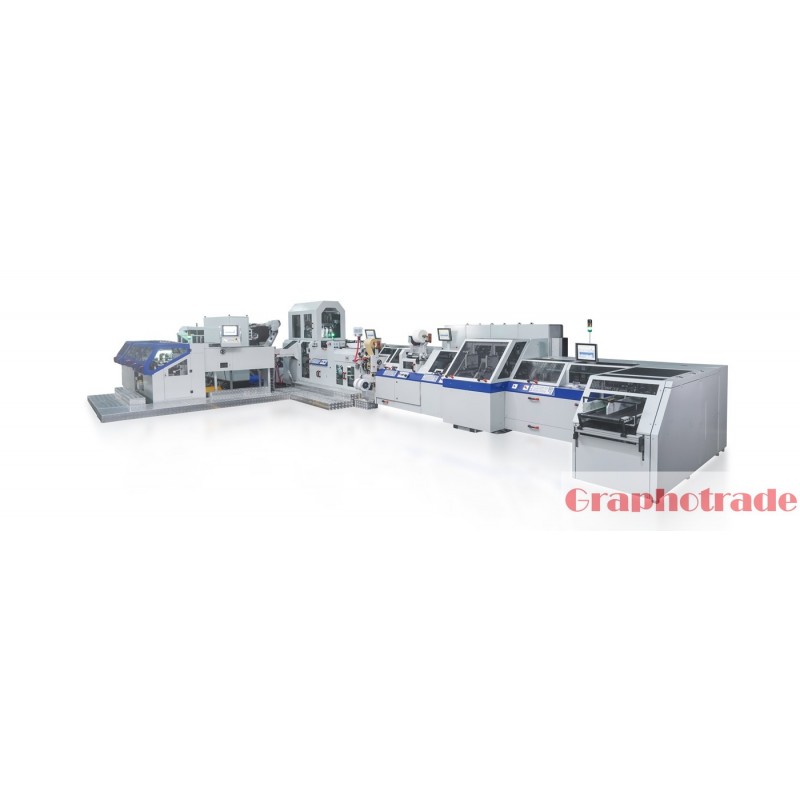

HXCP HX Classic 680 – Automatic Hardcover Book Production Line
Bring book block preparation and casing in together in an industrial hardcover workflow. Graphotrade – official HXCP representative in Bulgaria.
HX Classic 680 – build an industrial hardcover workflow
The line integrates rounding, backing, spine gluing, gauzing, backlining, headbanding and casing in. Touchscreen control supports production management. Automatic stacking and palletizing are optional.
Standard block sizes: 100 × 100 × 2 to 280 × 375 × 80 mm
Maximum rated speed: 60 cycles/min
Power: 51.6/57.6 kW for 5/7 stations
Supply: three-phase 400 V, 50 Hz
Weight: 16350 kg
Length: 11650/12940 mm; width: 2635 mm excluding infeed; height: 2700 mm
Output depends on the configuration and product. Ask Graphotrade for a production assessment.
