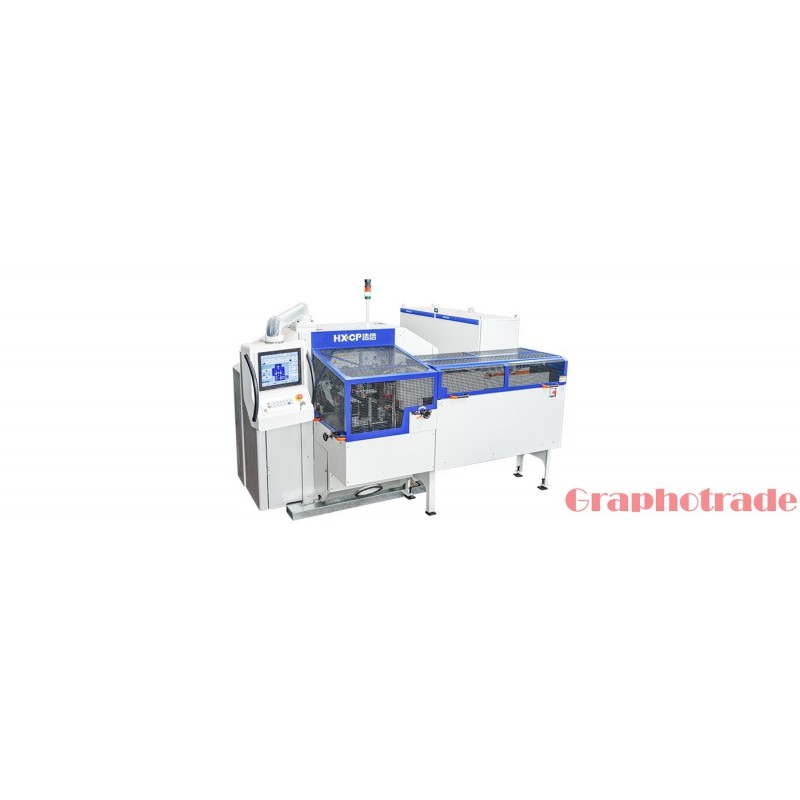

HXCP HX120DH High Speed Three Knife Trimmer
Trim the three open sides of perfect-bound books or book blocks. Dual pre-stacking stations allow several books to be collected for one cutting cycle, supporting standalone use or integration with a binding line.
Trim the three open sides of perfect-bound books or book blocks. Dual pre-stacking stations allow several books to be collected for one cutting cycle, supporting standalone use or integration with a binding line.
Technical data
| Max Book Size (Before Trim) | 310×430mm |
| Max Book Size (After Trim) | 305×420mm |
| Min Book Size (After Trim) | 70×100mm |
| Max Trim Thickness | 80mm |
| Min Trim Thickness | 2mm |
| Stacking Height | 2-80mm |
| Book Stacking Speed | 300-12000books/h |
| Feeding Speed | 300-12000books/h |
| Trimming Speed | 300-4200cuts/h |
| Input Voltage | 3ph,380V |
| Power | 13kW |
| Electrical Box Size | 2250×670×1850mm |
| Whole Machine Weight | 6000kg |
| Electrical Box Weight | 500kg |
Contact Graphotrade for a configuration and quotation suited to your production.
