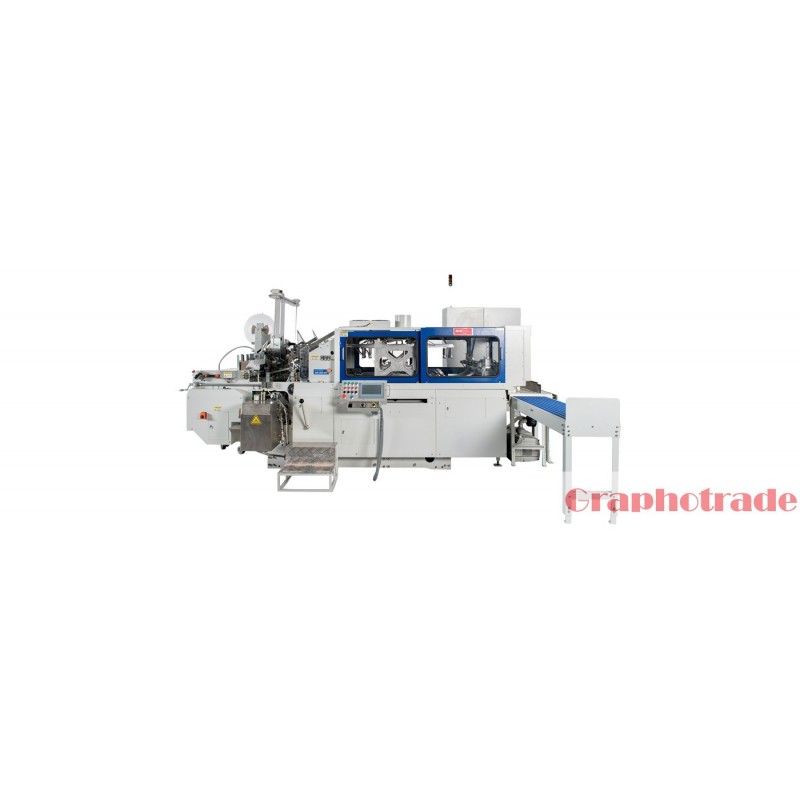

HXCP HX60 PLUS High Speed Hardcover Case Making Machine
Produce hard cases for books, files, calendars and board-game components automatically. The machine combines the core case-making operations in a production platform for a broad range of turned-edge products.
Produce hard cases for books, files, calendars and board-game components automatically. The machine combines the core case-making operations in a production platform for a broad range of turned-edge products.
Technical data
| Speed | 60pcs/min |
| Board Thickness | 1-4mm(optional device for minimum thickness 0.6mm) |
| Spine Width | 6-80mm |
| Thickness of Center Board Strip | 1-4mm(the most thickness is 2.5mm when width is 6mm) |
| Thickness of Flexible Spine | 0.3-0.5mm |
| Thickness of Cover Material | 0.1-0.3mm |
| Maximum Size (Expand) of Hardcover | 680×390mm |
| Minimum Size (Expand) of Hardcover | 105×160mm |
| Compressed Air Requirments | 650L/min @6bar |
| Power | 15.5kW (Heating for Glue Melting 6kW) |
| Weight | 6300kg |
| Dimensions | 5.7×3.3m(L×W) |
Contact Graphotrade for a configuration and quotation suited to your production.
