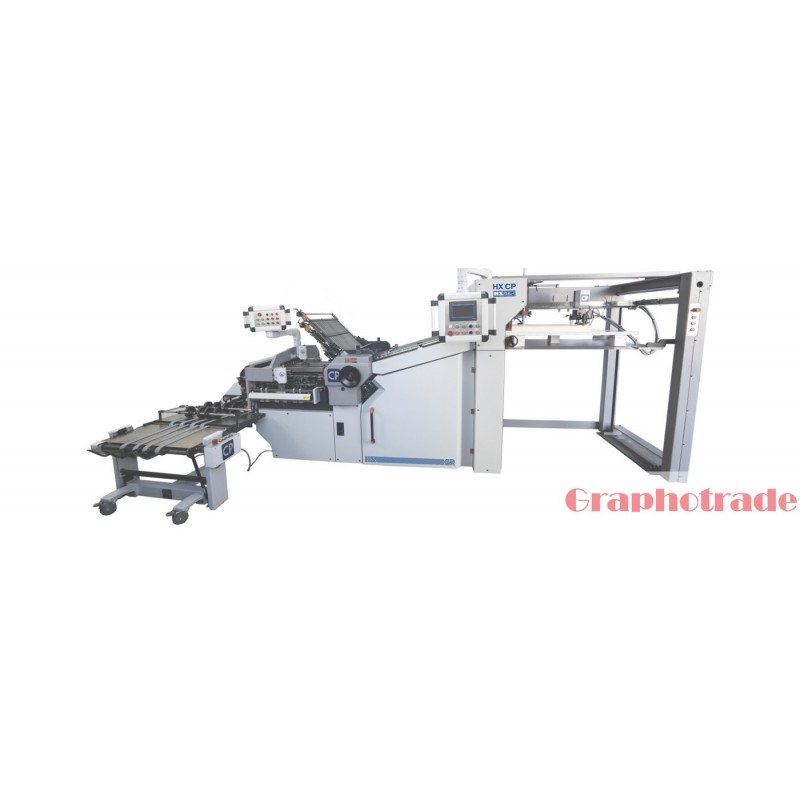

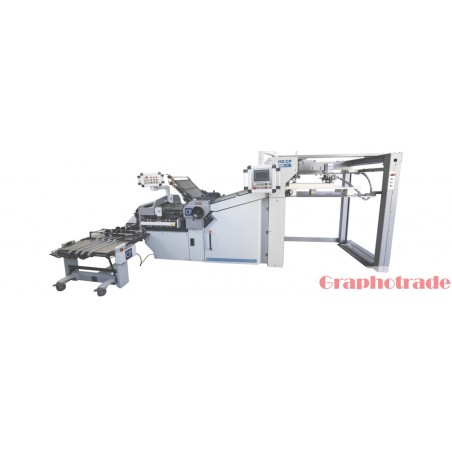

HXCP CP Gantry Pallet Combi Folding Machine
Combine buckle and knife folding with direct pallet loading. The gantry feeder suits medium and long runs and reduces manual handling of large printed sheets before folding.
Combine buckle and knife folding with direct pallet loading. The gantry feeder suits medium and long runs and reduces manual handling of large printed sheets before folding.
Technical data
| CP66/4KL-F Max. sheet size | 660×1040mm |
| Min. sheet size | 200×150mm |
| Paper Thickness | 40-210gsm |
| Max. Speed | 210m/min |
| CP78/4KLL-F Max. sheet size | 780×1140mm |
| Min. sheet size | 200×150mm |
| Paper Thickness | 40-210gsm |
| Max. Speed | 210m/min |
| CP80/4KLL-F Max. sheet size | 800×1200mm |
| Min. sheet size | 200×150mm |
| Paper Thickness | 40-210gsm |
| Max. Speed | 210m/min |
| CP66/4KL-F Power | 8.5kW |
| Dimensions | 4800×1510mm(L*W) |
| Weight | 2200kg |
| Stack Height | 0-1200mm |
| CP78/4KLL-F Power | 8.5kW |
| Dimensions | 4800×1630mm(L*W) |
| Weight | 2300kg |
| Stack Height | 0-1200mm |
| CP80/4KLL-F Power | 8.5kW |
| Dimensions | 4800×1650mm(L*W) |
| Weight | 2400kg |
| Stack Height | 0-1200mm |
Contact Graphotrade for a configuration and quotation suited to your production.
