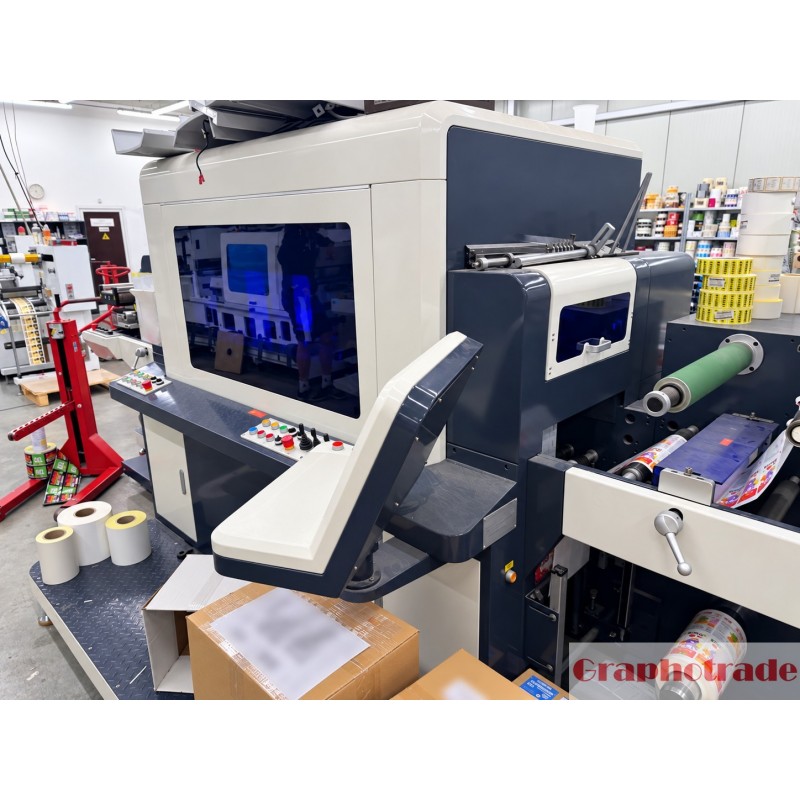

Reborn RBJ-350B – digital label die-cutting machine

Reborn RBJ-350B – Digital Label Die-Cutting Machine

Graphotrade offers a used Reborn RBJ-350B for digital cutting and finishing of roll-fed labels. It is suited to short and medium runs, frequent design changes and labels with different contours.

Cutting blades follow a digital file, eliminating the need to manufacture conventional dies for each design. This shortens job preparation and avoids die tooling costs.

According to the supplied information, the machine is in very good, fully functional condition, has been regularly maintained and is ready for production.

Features and applications

Digital contour cutting for different label shapes.

Suitable materials include paper, glossy and matt stocks, PP, BOPP, PET and reflective tapes. Material suitability depends on its properties.

Maximum material thickness: 0.35 mm.

Automatic tension control and web guiding.

Waste-matrix removal and rewinding.

Finished-web rewinding or cross-cutting into sheets with the included sheeter.

Wi-Fi/USB file transfer and remote diagnostic capability.

Technical specifications — supplied machine data

Manufacturer: Reborn Precision Machinery

Model: RBJ-350B

Maximum web width: 350 mm

Maximum material thickness: 0.35 mm

Cutting precision: ±0.1 mm

Digital blade configuration: 2 sets with 6 blades each

Accepted file formats: AI, DXF, PLT

Power supply: three-phase, 380 V

Required compressed air pressure: above 0.6 MPa

Machine weight: approximately 4500 kg

Condition: used

Included equipment

1 unwinder and main rewinder with automatic tension control

1 web-guiding system

1 waste-matrix rewinder

1 sheeter

The manufacturing year, maximum repeat length, unwind/rewind diameters and current rating remain to be confirmed.

Contact Graphotrade for a quotation, further information and an inspection.
