TMZ Unicutter 5001 – automatic die-cutting machine
Used TMZ Unicutter 5001 automatic die-cutting machine, manufactured in Spain in 1980. Format 640 × 860 mm, pressure 120 t and rated speed 5000 cycles/hour.

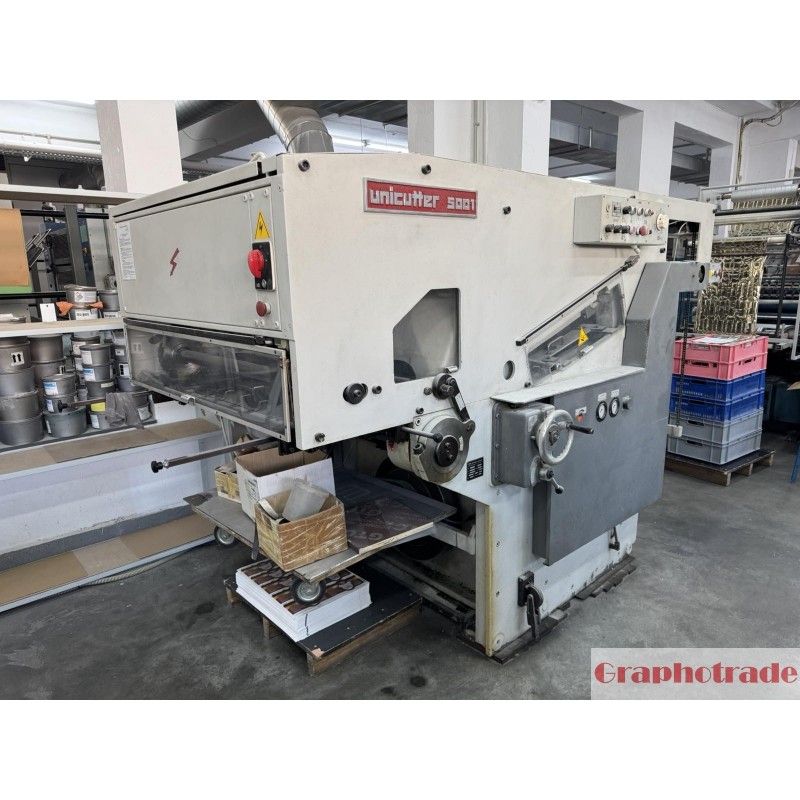

TMZ Unicutter 5001
Automatic flatbed die-cutting machine for die-cutting and creasing printed sheets and packaging blanks. Used machine, manufactured by TMZ in Zaragoza, Spain. The original machine photograph and identification plate are included.
Technical specifications (manufacturer plate):
Model: TMZ 5001 / Unicutter 5001
Manufacturing date: 28 November 1980
Serial number: C-2118
Sheet format: 640 × 860 mm
Die-cutting pressure: 120 t
Rated speed: 5000 cycles/hour
Electrical supply: 220/380 V, 50 Hz
Motor rating: 10 CV (approximately 7.35 kW)
Weight: 7000 kg
Cutting rule height: 23.8 mm
Actual output depends on the material, tooling and job. Contact Graphotrade for availability, inspection and further information.
