Gallus TCS 250 – Used Offset Label Printing Press

Gallus TCS 250 – Used Offset Label Printing Press

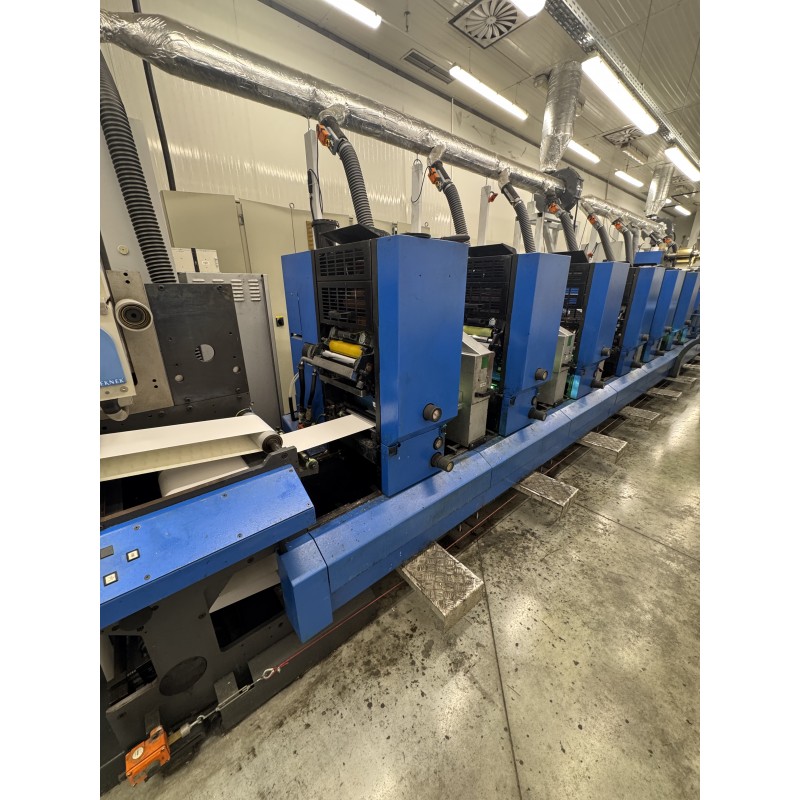

Graphotrade offers a used Gallus TCS 250 web-fed label press

Printing specifications — catalogue data for the model

Maximum print width: 254 mm.

Print length: 101.6–254 mm; maximum print format: 254 × 254 mm.

Web width: 130–265 mm.

Maximum mechanical speed: 11,000 cycles/hour; actual production speed depends on the process, format and substrate.

UV drying between printing units.

Installed configuration — information supplied by the owner

1 unwinding unit: feeds the substrate roll into the press.

7 offset printing units installed, of which 5 are currently operational. One offset unit is positioned after the hot-foil unit.

1 hot-foil stamping unit: decorative foil transfer.

1 flexographic varnishing unit: in-line varnish application.

1 embossing unit: relief finishing.

1 die-cutting unit: cuts the label shape.

1 waste-matrix removal unit: separates the surrounding waste from the labels.

2 rewinding units: rewind the processed web.

Condition and required repairs

Two offset units are out of order. Motors for the water and ink rollers need to be sourced/ordered for both units. The main motor of one unit also needs replacement; a new replacement motor is available. Restoring operation requires installation and testing. Several refurbished electronic boards for unit positioning are also available.

Finishing format

The model catalogue specifies flatbed or semi-rotary processing up to 254 mm wide and 101.6–254 mm long. These are model specifications; the working format and tooling of each installed hot-foil, embossing and die-cutting unit must be verified from its documentation.

Inspection and quotation

Price on request. Contact Graphotrade for availability, documentation and inspection. The manufacturing year has not been established from the photographed nameplate.
