• U.K TRIO Controller
• Full servo motor: Japan Panasonic
• Unwinder unit (diameter 800mm)
• BST Germany web guider
• Splice table with clamps

Модули

Flat hot stamping

• с пълно серво управление Panasonic (Япония)
• ширина: 540 mm
• дължина: 540 mm
• размер на топлия печат: 540 × 540 mm

Intermittent die cutter

• магнитен цилиндър: 152 зъба

Optional:

Flat flat die cutter

• с пълно серво управление Panasonic (Япония)
• ширина: 540 mm
• дължина: 540 mm

Машина

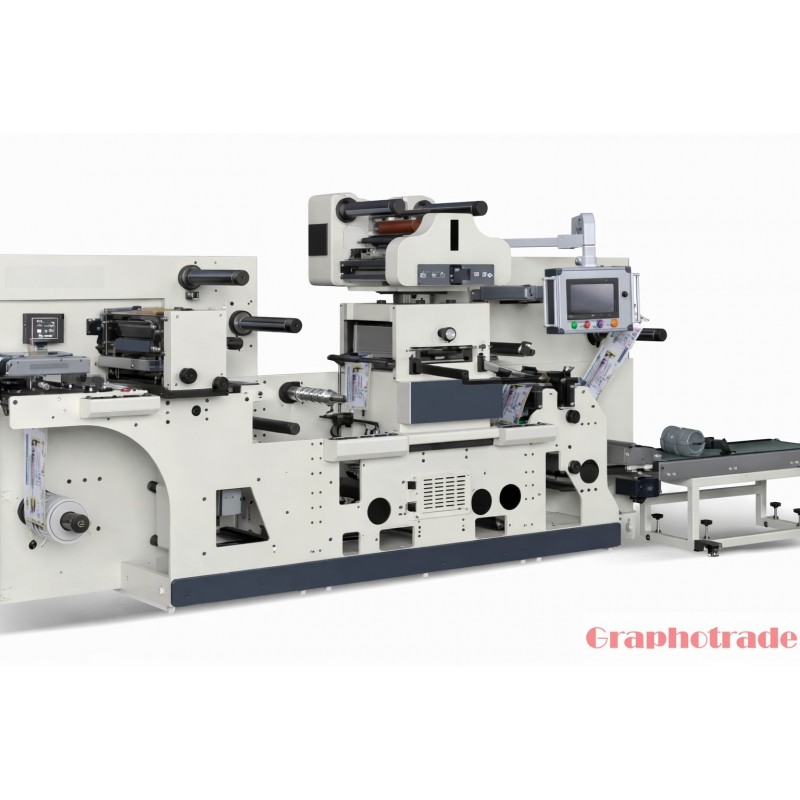

Flat bed die cutter machine

• Модел: 550 cm
• Макс. ширина материал: ≤ 550 mm
• Скорост на машината: ≤ 50 m/min
• Обща мощност: 30 kW
• Захранване: 380V / 50Hz / 3 фази
• Въздух: 0.4 – 0.6 MPa
• Тегло: 4500 kg

Unwinder unit

• Контрол на напрежение: servo taper control
• Диаметър: ≤ 850 mm
• Въздухов вал: 3”

Hot stamping / flat die cutter unit

• Скорост hot stamping: ≤ 200 цикъла/мин
• Скорост щанцоване: ≤ 400 цикъла/мин
• Работна площ: 450 × 450 mm
• Регистрация втори пас: ±0.15 mm
• Регистрация: чрез сензор
• Температура: 0 – 200°C
• Въздух: 0.4 – 0.6 MPa
• Servo-driven flatbed die cutter
• Точност: ±0.15 mm

Waste wrapper

• Контрол на напрежение: servo taper control
• Режим: snowball
• Диаметър отпадък: ≤ 600 mm

Rewinder unit

• Контрол на напрежение: servo taper control
• Диаметър: ≤ 850 mm
• Въздухов вал: 3”

Reference configurations

• UV flexo, cold foil, hot stamping, die cutter, slitting, sheeter
• Flat bed hot foil + semi rotary flexo + silk screen + semi rotary die cutter + slitter
• Flat bed hot foil + silk screen + semi rotary die cutter + slitter
• Flat bed hot foil + flexo varnish + silk screen + semi rotary die cutter + slitter

DETAILS DESCRIPTION

Unwinding

• Servo driver: 2KW – Panasonic (Япония)
• Web guide: BST (Германия)

Semi rotary & rotary die cutting (optional)

• Front feeding servo motor & driver: 3KW – Panasonic
• Front feeding speed reducer: 115 Series – SHIMPO
• Back feeding servo motor & driver: 2KW – Panasonic
• Back feeding speed reducer: 115 Series – SHIMPO
• Swing link servo motor & driver: 4KW – Panasonic
• Swing link speed reducer: 115 Series – SHIMPO
• Mark sensor: R58E – Banner (USA)
• Rotary die cutter servo motor & driver: 3KW ×2 – Panasonic
• Rotary die cutter speed reducer: 115 Series – SHIMPO
• Air cylinder: Airtac (Тайван)
• Bearings: NSK (Япония)
• Mark sensor: R58E – Banner (USA)

Hot stamp flat bed die cut unit

• Front feeding servo motor: 5KW – Panasonic
• Front feeding speed reducer: 115 Series – SHIMPO
• Swing link servo motor: 4KW – Panasonic
• Swing link speed reducer: 115 Series – SHIMPO
• Flat bed die cut servo motor: 4KW – Panasonic
• Flat bed die cut speed reducer: 115 Series – SHIMPO
• Hot stamp feeding servo motor: 1.5KW – Panasonic
• Hot stamp feeding reducer: 090 Series – SHIMPO
• Hot stamp swing link servo motor: 4KW – Panasonic
• Hot stamp swing link speed reducer: 115 Series – SHIMPO
• Hot stamp unwind magnetic powder: FZ6A-1 – Shengda (Китай)
• Hot stamp rewind magnetic powder: FL12B-1 – Shengda (Китай)
• Hot stamp rewind motor: 90W – Jingyan (Китай)
• Mark sensor: R58E – Banner (USA)
• Air cylinder: Airtac (Тайван)
• Bearings: NSK (Япония)

Waste wrapper

• Servo motor: 2KW

Rewinding system

• Upper rewinding shaft: 2KW – Panasonic
• Waste collection tension control: FL12B-1 – Shengda
• Waste collection magnetic powder: FL12B-1 – Shengda
• Snowball waste collection motor: 750W – JSCC
• Fan: 750W
• Bearings: NSK
• Servo motor: 0.4KW

Silk screen unit (ако е включен)

• Silk screen head servo motor: 2KW ×2 – Panasonic
• Front feeding speed reducer: 115 Series – SHIMPO
• Front feeding servo motor: 2KW – Panasonic
• Swing link servo motor: 1.5KW – Panasonic
• Swing link speed reducer: 115 Series – SHIMPO

FUNCTIONS

1. BST web guide control със сензор
2. Unwinding диаметър до 850 mm
3. Color tracking sensor за регистрация
4. Hot foil die cut unit със servo Panasonic
5. Semi rotary flexo unit (1 цилиндър, 400 lines anilox)
6. Semi rotary die cutting станция (152 z)
7. Pressure watch контрол за натиск
8. Реално време защита на магнитния нож
9. Snowball система за отпадък
10. Touch screen -английски
